The need for dependable and effective audio and video systems has increased in the modern, technologically advanced world. Superior audio and video installations are crucial for every type of setting, whether residential, commercial, or event space. Contacting Low-voltage wiring contractors is a vital component that supports these systems. Understanding the low-voltage wiring used in audio and video systems can significantly improve these installations’ dependability and performance. In this blog, we will explore low-voltage conductors, including their definition, advantages, and installation best practices.

What is Low-Voltage Cabling?

Electrical wiring and cabling systems that run at a comparatively low voltage—typically less than 50 volts—are referred to as low-voltage cabling. Low-voltage cabling is utilized for specialized applications, including telecommunications, alarm systems, and, most notably, audio and video systems. Standard electrical wire powers the majority of household and commercial electrical equipment and systems. Speaker wire, coaxial cable, HDMI cable, and Ethernet cable are some of these cables.

One of the essential features of low-voltage cabling is its construction. These cables frequently have several layers of shielding and insulation to hide the transmission from outside interference. This guarantees the clarity and distortion-free transmission of audio and video data via these wires. Additionally, low-voltage cables are typically more flexible and easier to handle than high-voltage cables, making them suitable for various installation environments, including within walls, ceilings, and tight spaces.

What is High-Voltage Cabling?

On the other hand, electrical systems that run at voltages higher than 600 volts need high-voltage cabling. In commercial and residential settings, this kind of cabling is intended to transport significant electrical power to operate heavy machinery, industrial equipment, and power distribution systems. Strong insulation and massive current handling are features of high-voltage cables, which guard against electrical risks.

High-voltage cables are built tough, with several layers of insulation, shielding, and frequently metallic armor to guard against interference from electrical signals and physical harm. The long-distance, safe, and dependable electrical power transfer is ensured by the cables’ insulating materials, which resist high temperatures and electrical breakdown. High-voltage cables are typically used in applications such as power generation plants, substations, and industrial facilities where large amounts of electrical power need to be transmitted efficiently and safely.

What is the Difference Between High- and Low-Voltage Cabling?

Their intended uses and operating voltages are the primary distinctions between high- and low-voltage cabling. High-voltage cabling works at voltages usually more significant than 600 volts and is meant to transport large amounts of electrical power. Large-scale power distribution networks, industrial machinery, and other uses requiring significant electrical power depend on these connections. High-voltage cabling must be built with sturdy insulation and shielding because of the high power levels to guarantee dependability and safety.

Conversely, low-voltage cabling functions at substantially lower voltages—typically less than 50 volts. The transmission of data, communication signals, and low-power electrical impulses are the primary uses of this kind of cable. Low-voltage cabling is used in home automation, telecommunications, alarm systems, and audio and video systems. The lower voltage levels reduce the risk of electrical hazards, making low-voltage cabling safer and easier to install and maintain compared to high-voltage cabling.

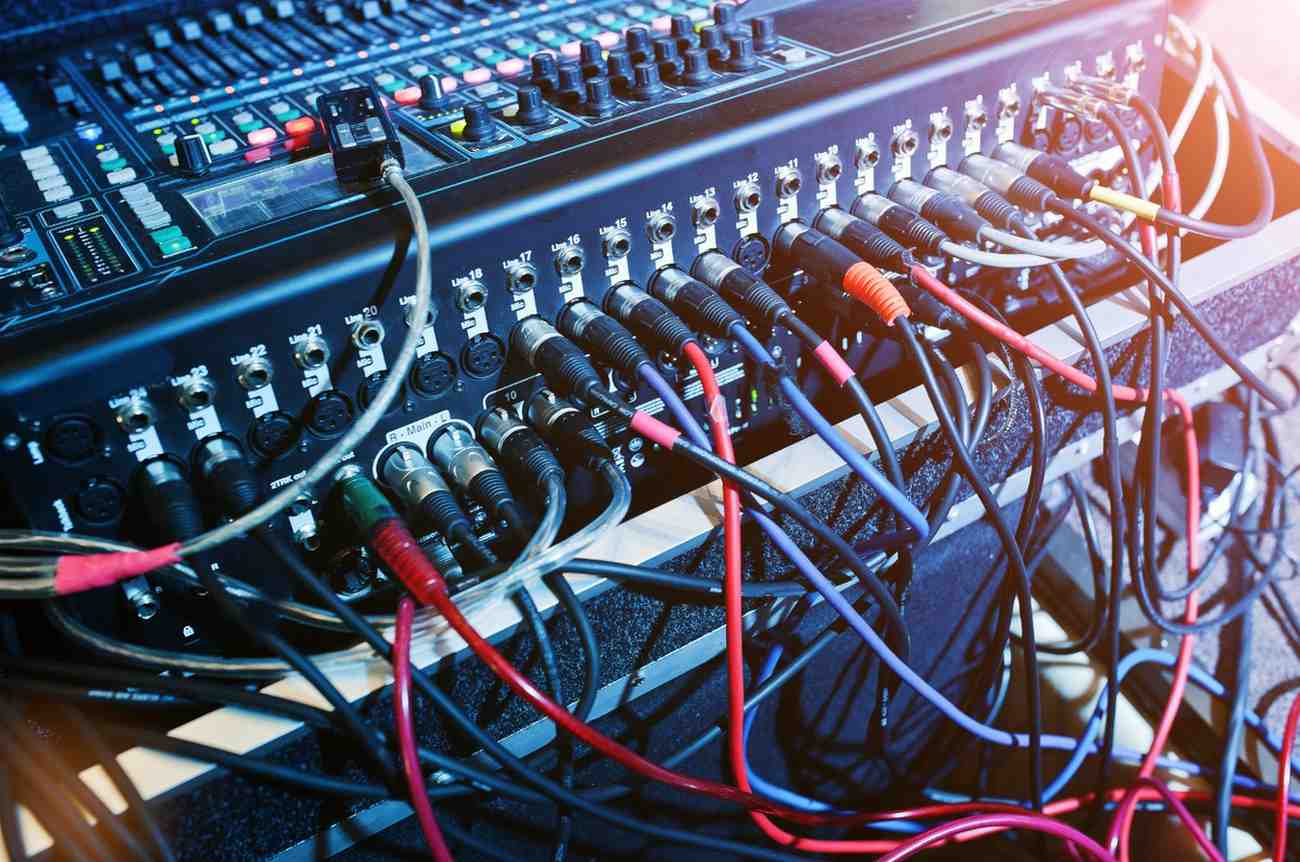

Low Voltage Wiring Is Used For Audio And Video Systems

Types of Low Voltage Wiring

Low voltage wiring is diverse, each type serving specific functions in audio and video systems. Here are some of the primary types:

Speaker Wire

Speaker wires are designed to transmit audio signals from an amplifier or receiver to speakers. They are typically composed of two conductors, copper or aluminum, and are insulated to prevent interference. Speaker wires come in various gauges, with thicker wires providing better quality over longer distances.

Coaxial Cable

Coaxial cables are commonly used for transmitting television signals, internet data, and digital audio signals. They consist of a central conductor, an insulating layer, a metallic shield, and an outer insulating layer. This design helps to protect the signal from electromagnetic interference, ensuring precise and consistent signal transmission.

HDMI Cable

HDMI (High-Definition Multimedia Interface) cables are essential for transmitting high-definition video and audio signals. These cables support both standard and high-definition video and multi-channel audio. HDMI cables connect devices like TVs, monitors, gaming consoles, and home theater systems, providing high-quality digital signal transmission.

Ethernet Cable

Ethernet cables connect computers and other devices, facilitating data transfer for Internet and intranet connections. They can also be used in audio and video systems to stream content, connect smart devices, and ensure stable internet connections. Ethernet cables come in various categories, such as Cat5e, Cat6, and Cat7, each offering different speeds and bandwidth capacities.

Benefits of Low Voltage Wiring

Low voltage wiring offers several advantages, making it a preferred choice for modern audio and video systems.

Reduced Interference

Low-voltage wiring is less susceptible to electrical interference, which can significantly impact signal quality. The design and materials used in low-voltage cables help minimize the effects of electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring more precise audio and video signals.

Better Signal Quality

Because low-voltage wiring is designed to handle specific signals, it often provides superior signal quality compared to high-voltage wiring. This results in better audio fidelity and higher-resolution video, enhancing the overall experience of audio and video systems.

Easy Installation and Maintenance

Installing low-voltage wiring is typically simpler and less hazardous than high-voltage wiring. The cables are lighter, more flexible, and easier to route through walls and ceilings. Additionally, maintaining low-voltage systems is less complex, requiring less specialized knowledge and equipment.

Best Practices for Installing Low Voltage Wiring

Adhering to best practices during installation is crucial to ensure optimal performance and longevity of low-voltage wiring in audio and video systems.

Planning the Layout

Before starting the installation, carefully plan the wiring layout. Identify the locations of all components, such as speakers, TVs, and network devices. Determine the best routes for the cables, considering factors like distance, potential sources of interference, and accessibility for future maintenance.

Using Appropriate Cable Types

Choose the correct type of cable for each application. Use speaker wire for audio connections, coaxial cables for television signals, HDMI cables for high-definition video, and Ethernet cables for networking. Ensure the wires are of adequate quality and gauge to handle the required signal transmission.

Proper Termination and Labeling

Terminate all cables properly to prevent signal loss and interference. Use high-quality connectors and ensure they are securely attached. Label each cable clearly at both ends to simplify future troubleshooting and maintenance. This practice can save time and reduce confusion when managing complex systems.

Enlist the Help of Cabling Experts

If you are in doubt, it is best to seek the assistance of low-voltage wiring contractors or a qualified low-voltage cable installer like Cabling Drops for intricate installations. These professionals have the know-how and expertise to complete the installation appropriately and according to all applicable standards and norms. They can also guide you on which materials and methods would be best for your particular needs.
